AXIAL LEAD ZENER DIODES
FEATURES
• Planar Die construction

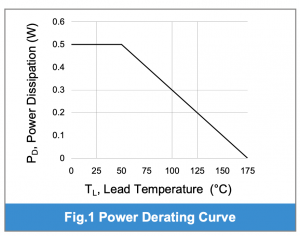

• 500mW Power Dissipation
• Ideally Suited for Automated Assembly Processes
• Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

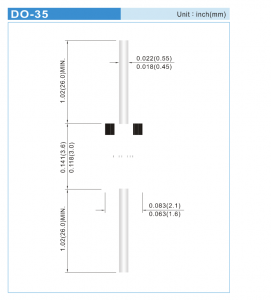

• Case: Molded Glass DO-35
• Terminals: Solderable per MIL-STD-750, Method 2026
• Approx. Weight: 0.00465 ounces, 0.131 grams
• Ordering information: Suffix : “ -35 ” to order DO-35 Package • Packing information
B/P - 2K per Bulk box
T/R - 10K per 15" plastic Reel
T/B - 5K per horiz. tape & Ammo box
|
Part Number |
Nominal Zener Voltage |
Max. Zener Impedance |
Max. Reverse Leakage Current |
Marking Code |
||||
|
VZ @ IZT |
ZZT @IZT |
I R @ VR |
||||||
|
Nom.V Min.V Max.V |
|
mA |
A |
V |
||||
|
1N4099 |
6.8 |
6.460 |
7.140 |
200 |
0.25 |
10 |
5.2 |
1N4099 |
|
1N4100 |
7.5 |
7.125 |
7.875 |
200 |
0.25 |
10 |
5.7 |
1N4100 |
|
1N4101 |
8.2 |
7.790 |
8.610 |
200 |
0.25 |
1.0 |
6.3 |
1N4101 |
|
1N4102 |
8.7 |
8.265 |
9.135 |
200 |
0.25 |
1.0 |
6.7 |
1N4102 |
|
1N4103 |
9.1 |
8.645 |
9.555 |
200 |
0.25 |
1.0 |
7.0 |
1N4103 |
|
1N4104 |
10 |
9.50 |
10.50 |
200 |
0.25 |
1.0 |
7.6 |
1N4104 |
|
1N4105 |
11 |
10.45 |
11.55 |
200 |
0.25 |
0.05 |
8.5 |
1N4105 |
|
1N4106 |
12 |
11.40 |
12.60 |
200 |
0.25 |
0.05 |
9.2 |
1N4106 |
|
1N4107 |
13 |
12.35 |
13.65 |
200 |
0.25 |
0.05 |
9.9 |
1N4107 |
|
1N4108 |
14 |
13.30 |
14.70 |
200 |
0.25 |
0.05 |
10.7 |
1N4108 |
|
1N4109 |
15 |
14.25 |
15.75 |
100 |
0.25 |
0.05 |
11.4 |
1N4109 |
|
1N4110 |
16 |
15.20 |
16.80 |
100 |
0.25 |
0.05 |
12.2 |
1N4110 |
|
1N4111 |
17 |
16.15 |
17.85 |
100 |
0.25 |
0.05 |
13.0 |
1N4111 |
|
1N4112 |
18 |
17.10 |
18.90 |
100 |
0.25 |
0.05 |
13.7 |
1N4112 |
