AXIAL LEAD ZENER DIODES
1N4614,1N4615,1N4616,1N46171,1N4618,1N4619,1N4620,1N4621,1N4622,1N4623,1N4624,1N4625,1N4626,1N4627
FEATURES
• Planar Die construction

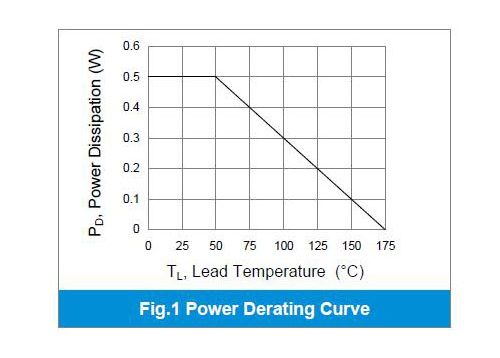

• 500mW Power Dissipation
• Ideally Suited for Automated Assembly Processes
• Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA
• Case: Molded Glass DO-35
• Terminals: Solderable per MIL-STD-750, Method 2026 • Packing information
B/P - 2K per Bulk box
T/R - 10K per 15" Reel
T/B - 5K per horiz. tape & Ammo box
