SILICON ZENER DIODES

FEATURES

• Planar Die construction

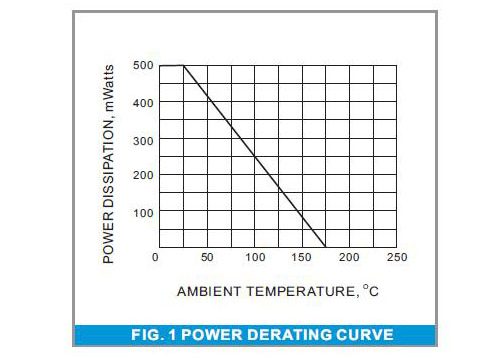

• 500mW Power Dissipation
• Ideally Suited for Automated Assembly Processes
• Lead free in compliance with EU RoHS 2011/65/EU directive

  MECHANICAL DATA

• Case: Molded Glass DO-35
• Terminals: Solderable per MIL-STD-750, Method 2026
• Polarity: See Diagram Below
• Packing information

  B/P - 2K per Bulk box
  T/R - 10K per 15" Reel
  T/B - 5K per horiz. tape & Ammo box
