SILICON ZENER DIODES
FEATURES
• Low inductance
• High temperature soldering : 260°C /10 seconds at terminals
• Glass package has Underwriters Laboratory Flammability Classification • Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

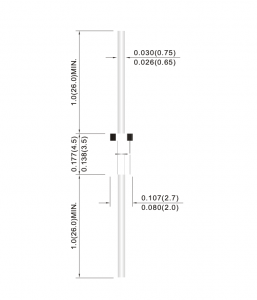

• Case: Molded Glass DO-41G
• Terminals: Axial leads, solderable per MIL-STD-750, Method 2026 • Polarity: Color band denotes positive end
• Weight: 0.012 ounce, 0.317 gram
|
1N5921B-G |
6.8 |
6.46 |
7.14 |
3 |
55.1 |
200 |
1 |
5 |
5.2 |
|
1N5922B-G |
7.5 |
7.13 |
7.88 |
3 |
50 |
400 |
0.5 |
5 |
6 |
|
1N5923B-G |
8.2 |
7.79 |
8.61 |
4 |
45.7 |
400 |
0.5 |
5 |
6.5 |
|
1N5924B-G |
9.1 |
8.65 |
9.56 |
4 |
41.2 |
500 |
0.5 |
5 |
7 |
|
1N5925B-G |
10 |
9.5 |
10.5 |
5 |
37.5 |
500 |
0.25 |
5 |
8 |
|
1N5926B-G |
11 |
10.45 |
11.55 |
6 |
34.1 |
550 |
0.25 |
1 |
8.4 |
|
1N5927B-G |
12 |
11.4 |
12.6 |
7 |
31.2 |
550 |
0.25 |
1 |
9.1 |
|
1N5928B-G |
13 |
12.35 |
13.65 |
7 |
28.8 |
550 |
0.25 |
1 |
9.9 |
|
1N5929B-G |
15 |
14.25 |
15.75 |
9 |
25 |
600 |
0.25 |
1 |
11.4 |
|
1N5930B-G |
16 |
15.2 |
16.8 |
10 |
23.4 |
600 |
0.25 |
1 |
12.2 |
|
1N5931B-G |
18 |
17.1 |
18.9 |
12 |
20.8 |
650 |
0.25 |
1 |
13.7 |
|
1N5932B-G |
20 |
19 |
21 |
14 |
18.7 |
650 |
0.25 |
1 |
15.2 |
|
1N5933B-G |
22 |
20.9 |
23.1 |
18 |
17 |
650 |
0.25 |
1 |
16.7 |
|
1N5934B-G |
24 |
22.8 |
25.2 |
19 |
15.6 |
700 |
0.25 |
1 |
18.2 |
|
1N5935B-G |
27 |
25.65 |
28.35 |
23 |
13.9 |
700 |
0.25 |
1 |
20.6 |
|
1N5936B-G |
30 |
28.5 |
31.5 |
26 |
12.5 |
750 |
0.25 |
1 |
22.8 |
|
1N5937B-G |
33 |
31.35 |
34.65 |
33 |
11.4 |
800 |
0.25 |
1 |
25.1 |
|
1N5938B-G |
36 |
34.2 |
37.8 |
38 |
10.4 |
850 |
0.25 |
1 |
27.4 |
|
1N5939B-G |
39 |
37.05 |
40.95 |
45 |
9.6 |
900 |
0.25 |
1 |
29.7 |
|
1N5940B-G |
43 |
40.85 |
45.15 |
53 |
8.7 |
950 |
0.25 |
1 |
32.7 |
|
1N5941B-G |
47 |
44.65 |
49.35 |
67 |
8 |
1000 |
0.25 |
1 |
35.8 |
|
1N5942B-G |
51 |
48.45 |
53.55 |
70 |
7.3 |
1100 |
0.25 |
1 |
38.8 |
