All Products >> Transistor >>BC846,BC847,BC848 SERIES

Product Details

FEATURES

• General purpose amplifier applications
• NPN epitaxial silicon, planar design
• For switching and AF amplifier applications • Ideally suited for automatic insertion
• Lead free in compliance with EU RoHS

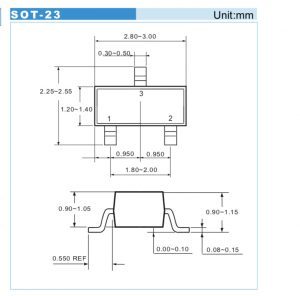

MECHANICAL DATA

• Case Material: Molded Plastic.
• UL Flammability Classification Rating 94V-0

DEVICE MARKING

BC846A=1A; BC846B=1B; BC847A=1E; BC847B=1F; BC847C=1G; BC848A=1J; BC848B=1K: BC848C=1L

Download PDF / 点选下面的编号自动下载
