SURFACE MOUNT ZENER DIODES

FEATURES

• Planar Die construction
• 500mW Power Dissipation
• Ideally Suited for Automated Assembly Processes
• Lead free in comply with EU RoHS 2011/65/EU directivesMECHANICAL DATA

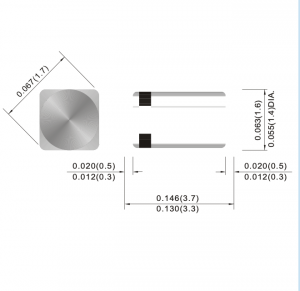

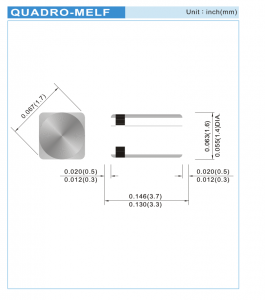

• Case: Molded Glass QUADRO-MELF
• Terminals: Solderable per MIL-STD-750, Method 2026
• Polarity: See Diagram Below
• Approx. Weight: 0.008 grams
• Mounting Position: Any

Packing information

T/R - 2.5K per 7" plastic Reel T/R - 10K per 13" plastic Reel

BZQ55-B2V4
BZQ55-B2V7
BZQ55-B4V7
BZQ55-B5V1
BZQ55-B5V6
BZQ55-B6V2
BZQ55-B6V8
BZQ55-B7V5
BZQ55-B8V2
BZQ55-B9V1
BZQ55-B10
BZQ55-B11
BZQ55-B12
BZQ55-B13
BZQ55-B15
BZQ55-B16
BZQ55-B18
BZQ55-B20
BZQ55-B22
BZQ55-B24
BZQ55-B27
BZQ55-B30
BZQ55-B33
BZQ55-B36
BZQ55-B39
BZQ55-B43
BZQ55-B47
BZQ55-B51
BZQ55-B56
BZQ55-B62
BZQ55-B68
BZQ55-B3V0
BZQ55-B3V3
BZQ55-B3V6
BZQ55-B3V9
BZQ55-B4V3
BZQ55-B75
