AXIAL LEAD ZENER DIODES
FEATURES
Planar Die construction
500mW Power Dissipation
Ideally Suited for Automated Assembly Processes
Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

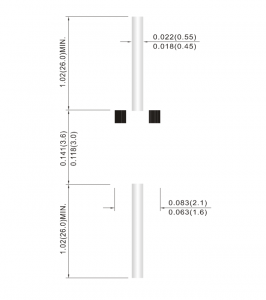

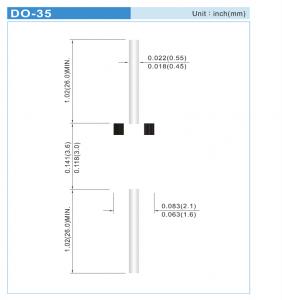

Case: Molded glass DO-35
Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.13 grams
Ordering information: Suffix :” -35” to order DO-35 Package Packing information
B/P - 2K per Bulk box
T/R - 10K per 15" plastic Reel
T/B - 5K per horiz. tape & Ammo box
|
BZX55B2V4 |
2.4 |
2.35 |
2.45 |
85 |
5 |
600 |
1 |
50 |
1 |
BZX55B2V4 |
|
BZX55B2V7 |
2.7 |
2.65 |
2.75 |
85 |
5 |
600 |
1 |
10 |
1 |
BZX55B2V7 |
|
BZX55B3V0 |
3.0 |
2.94 |
3.06 |
85 |
5 |
600 |
1 |
4 |
1 |
BZX55B3V0 |
|
BZX55B3V3 |
3.3 |
3.23 |
3.37 |
85 |
5 |
600 |
1 |
2 |
1 |
BZX55B3V3 |
|
BZX55B3V6 |
3.6 |
3.53 |
3.67 |
85 |
5 |
600 |
1 |
2 |
1 |
BZX55B3V6 |
|
BZX55B3V9 |
3.9 |
3.82 |
3.98 |
85 |
5 |
600 |
1 |
2 |
1 |
BZX55B3V9 |
|
BZX55B4V3 |
4.3 |
4.21 |
4.39 |
75 |
5 |
600 |
1 |
1 |
1 |
BZX55B4V3 |
|
BZX55B4V7 |
4.7 |
4.61 |
4.79 |
60 |
5 |
600 |
1 |
0.5 |
1 |
BZX55B4V7 |
|
BZX55B5V1 |
5.1 |
5.00 |
5.20 |
35 |
5 |
550 |
1 |
0.1 |
1 |
BZX55B5V1 |
|
BZX55B5V6 |
5.6 |
5.49 |
5.71 |
25 |
5 |
450 |
1 |
0.1 |
1 |
BZX55B5V6 |
|
BZX55B6V2 |
6.2 |
6.08 |
6.32 |
10 |
5 |
200 |
1 |
0.1 |
2 |
BZX55B6V2 |
|
BZX55B6V8 |
6.8 |
6.66 |
6.94 |
8 |
5 |
150 |
1 |
0.1 |
3 |
BZX55B6V8 |
|
BZX55B7V5 |
7.5 |
7.35 |
7.65 |
7 |
5 |
50 |
1 |
0.1 |
5 |
BZX55B7V5 |
|
BZX55B8V2 |
8.2 |
8.04 |
8.36 |
7 |
5 |
50 |
1 |
0.1 |
6 |
BZX55B8V2 |
|
BZX55B9V1 |
9.1 |
8.92 |
9.28 |
10 |
5 |
50 |
1 |
0.1 |
7 |
BZX55B9V1 |
|
BZX55B10 |
10 |
9.80 |
10.20 |
15 |
5 |
70 |
1 |
0.1 |
7.5 |
BZX55B10 |
|
BZX55B11 |
11 |
10.78 |
11.22 |
20 |
5 |
70 |
1 |
0.1 |
8.5 |
BZX55B11 |
|
BZX55B12 |
12 |
11.76 |
12.24 |
20 |
5 |
90 |
1 |
0.1 |
9 |
BZX55B12 |
|
BZX55B13 |
13 |
12.74 |
13.26 |
26 |
5 |
110 |
1 |
0.1 |
10 |
BZX55B13 |
|
BZX55B15 |
15 |
14.70 |
15.30 |
30 |
5 |
110 |
1 |
0.1 |
11 |
BZX55B15 |
|
BZX55B16 |
16 |
15.68 |
16.32 |
40 |
5 |
170 |
1 |
0.1 |
12 |
BZX55B16 |
|
BZX55B18 |
18 |
17.64 |
18.36 |
50 |
5 |
170 |
1 |
0.1 |
14 |
BZX55B18 |
|
BZX55B20 |
20 |
19.60 |
20.40 |
55 |
5 |
220 |
1 |
0.1 |
15 |
BZX55B20 |
|
BZX55B22 |
22 |
21.56 |
22.44 |
55 |
5 |
220 |
1 |
0.1 |
17 |
BZX55B22 |
|
BZX55B24 |
24 |
23.5 |
24.5 |
80 |
5 |
220 |
1 |
0.1 |
18 |
BZX55B24 |
|
BZX55B27 |
27 |
26.5 |
27.5 |
80 |
5 |
220 |
1 |
0.1 |
20 |
BZX55B27 |
|
BZX55B30 |
30 |
29.4 |
30.6 |
80 |
5 |
220 |
1 |
0.1 |
22 |
BZX55B30 |
|
BZX55B33 |
33 |
32.3 |
33.7 |
80 |
5 |
220 |
1 |
0.1 |
24 |
BZX55B33 |
|
BZX55B36 |
36 |
35.3 |
36.7 |
80 |
5 |
220 |
1 |
0.1 |
27 |
BZX55B36 |
|
BZX55B39 |
39 |
38.2 |
39.8 |
90 |
2.5 |
500 |
1 |
0.1 |
30 |
BZX55B39 |
|
BZX55B43 |
43 |
42.1 |
43.9 |
90 |
2.5 |
600 |
1 |
0.1 |
33 |
BZX55B43 |
|
BZX55B47 |
47 |
46.1 |
47.9 |
110 |
2.5 |
700 |
1 |
0.1 |
36 |
BZX55B47 |
|
BZX55B51 |
51 |
50 |
52 |
125 |
2.5 |
700 |
0.5 |
0.1 |
39 |
BZX55B51 |
|
BZX55B56 |
56 |
54.9 |
57.1 |
135 |
2.5 |
1000 |
0.5 |
0.1 |
43 |
BZX55B56 |
|
BZX55B62 |
62 |
60.8 |
63.2 |
150 |
2.5 |
1000 |
0.5 |
0.1 |
47 |
BZX55B62 |
|
BZX55B68 |
68 |
66.6 |
69.4 |
200 |
2.5 |
1000 |
0.5 |
0.1 |
51 |
BZX55B68 |
|
BZX55B75 |
75 |
73.5 |
76.5 |
250 |
2.5 |
1500 |
0.5 |
0.1 |
56 |
BZX55B75 |
