AXIAL LEAD ZENER DIODES
FEATURES
Planar Die construction
500mW Power Dissipation
Ideally Suited for Automated Assembly Processes
Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

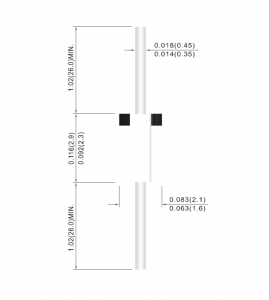

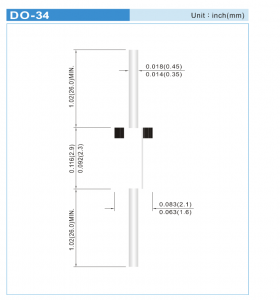

Case: Molded glass DO-34
Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.094 grams
Packing information B/P - 2K per Bulk box
T/R - 10K per 15" plastic Reel
T/B - 5K per horiz. tape & Ammo box
|
Part Number |
||||||||||
|
BZX55C2V4-34 |
2.4 |
2.28 |
2.56 |
85 |
5 |
600 |
1 |
50 |
1 |
Z2V4 |
|
BZX55C2V7-34 |
2.7 |
2.5 |
2.9 |
85 |
5 |
600 |
1 |
10 |
1 |
Z2V7 |
|
BZX55C3V0-34 |
3 |
2.8 |
3.2 |
85 |
5 |
600 |
1 |
4 |
1 |
Z3V0 |
|
BZX55C3V3-34 |
3.3 |
3.1 |
3.5 |
85 |
5 |
600 |
1 |
2 |
1 |
Z3V3 |
|
BZX55C3V6-34 |
3.6 |
3.4 |
3.8 |
85 |
5 |
600 |
1 |
2 |
1 |
Z3V6 |
|
BZX55C3V9-34 |
3.9 |
3.7 |
4.1 |
85 |
5 |
600 |
1 |
2 |
1 |
Z3V9 |
|
BZX55C4V3-34 |
4.3 |
4 |
4.6 |
75 |
5 |
600 |
1 |
1 |
1 |
Z4V3 |
|
BZX55C4V7-34 |
4.7 |
4.4 |
5 |
60 |
5 |
600 |
1 |
0.5 |
1 |
Z4V7 |
|
BZX55C5V1-34 |
5.1 |
4.8 |
5.4 |
35 |
5 |
550 |
1 |
0.1 |
1 |
Z5V1 |
|
BZX55C5V6-34 |
5.6 |
5.2 |
6 |
25 |
5 |
450 |
1 |
0.1 |
1 |
Z5V6 |
|
BZX55C6V2-34 |
6.2 |
5.8 |
6.6 |
10 |
5 |
200 |
1 |
0.1 |
2 |
Z6V2 |
|
BZX55C6V8-34 |
6.8 |
6.4 |
7.2 |
8 |
5 |
150 |
1 |
0.1 |
3 |
Z6V8 |
|
BZX55C7V5-34 |
7.5 |
7 |
7.9 |
7 |
5 |
50 |
1 |
0.1 |
5 |
Z7V5 |
|
BZX55C8V2-34 |
8.2 |
7.7 |
8.7 |
7 |
5 |
50 |
1 |
0.1 |
6 |
Z8V2 |
|
BZX55C9V1-34 |
9.1 |
8.5 |
9.6 |
10 |
5 |
50 |
1 |
0.1 |
7 |
Z9V1 |
|
BZX55C10-34 |
10 |
9.4 |
10.6 |
15 |
5 |
70 |
1 |
0.1 |
7.5 |
Z10 |
|
BZX55C11-34 |
11 |
10.4 |
11.6 |
20 |
5 |
70 |
1 |
0.1 |
8.5 |
Z11 |
|
BZX55C12-34 |
12 |
11.4 |
12.7 |
20 |
5 |
90 |
1 |
0.1 |
9 |
Z12 |
|
BZX55C13-34 |
13 |
12.4 |
14.1 |
26 |
5 |
110 |
1 |
0.1 |
10 |
Z13 |
|
BZX55C15-34 |
15 |
13.8 |
15.6 |
30 |
5 |
110 |
1 |
0.1 |
11 |
Z15 |
|
BZX55C16-34 |
16 |
15.3 |
17.1 |
40 |
5 |
170 |
1 |
0.1 |
12 |
Z16 |
|
BZX55C18-34 |
18 |
16.8 |
19.1 |
50 |
5 |
170 |
1 |
0.1 |
14 |
Z18 |
|
BZX55C20-34 |
20 |
18.8 |
21.2 |
55 |
5 |
220 |
1 |
0.1 |
15 |
Z20 |
|
BZX55C22-34 |
22 |
20.8 |
23.3 |
55 |
5 |
220 |
1 |
0.1 |
17 |
Z22 |
|
BZX55C24-34 |
24 |
22.8 |
25.6 |
80 |
5 |
220 |
1 |
0.1 |
18 |
Z24 |
|
BZX55C27-34 |
27 |
25.1 |
28.9 |
80 |
5 |
220 |
1 |
0.1 |
20 |
Z27 |
|
BZX55C30-34 |
30 |
28 |
32 |
80 |
5 |
220 |
1 |
0.1 |
22 |
Z30 |
|
BZX55C33-34 |
33 |
31 |
35 |
80 |
5 |
220 |
1 |
0.1 |
24 |
Z33 |
|
BZX55C36-34 |
36 |
34 |
38 |
80 |
5 |
220 |
1 |
0.1 |
27 |
Z36 |
|
BZX55C39-34 |
39 |
37 |
41 |
90 |
2.5 |
500 |
1 |
0.1 |
30 |
Z39 |
|
BZX55C43-34 |
43 |
40 |
46 |
90 |
2.5 |
600 |
1 |
0.1 |
33 |
Z43 |
|
BZX55C47-34 |
47 |
44 |
50 |
110 |
2.5 |
700 |
1 |
0.1 |
36 |
Z47 |
|
BZX55C51-34 |
51 |
48 |
54 |
125 |
2.5 |
700 |
0.5 |
0.1 |
39 |
Z51 |
|
BZX55C56-34 |
56 |
52 |
60 |
135 |
2.5 |
1000 |
0.5 |
0.1 |
43 |
Z56 |
|
BZX55C62-34 |
62 |
58 |
66 |
150 |
2.5 |
1000 |
0.5 |
0.1 |
47 |
Z62 |
|
BZX55C68-34 |
68 |
64 |
72 |
200 |
2.5 |
1000 |
0.5 |
0.1 |
51 |
Z68 |
|
BZX55C75-34 |
75 |
70 |
79 |
250 |
2.5 |
1500 |
0.5 |
0.1 |
56 |
Z75 |
